AZUD
AZUD HELIX AUTOMATIC 200

AZUD HELIX AUTOMATIC 200

Sectors

Agriculture
Landscaping
Residential

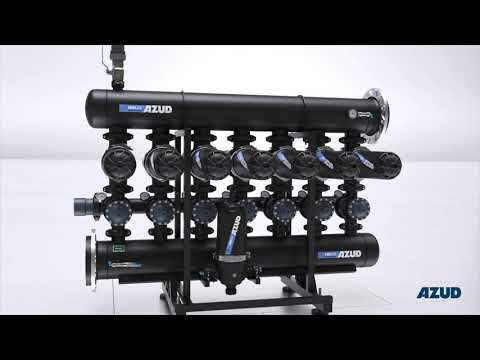

Ø2” Self-cleaning disc filtration equipment with Ø2” 3-way backwash valves. for the removal of inorganic and organic suspended particles, with non- stop filtered water supply thanks to sequential backwash of each filter element.Ideal for filtration of poor quality water and/or with organic fertilizers.
Technical data AZUD HELIX AUTOMATIC 200
Differential values

Protection

High filtration capacity, ideal for water with high particle loads

Guaranteed water quality thanks to AZUD 3D discs, with MG or WS technology, with both surface and in-depth particles filtration

Savings

Lower water consumption thanks to the patented AZUD HELIX device, which drastically reduces the backwash frequency

Minimum energy consumption thanks to AZUD DLP TECHNOLOGY, ensuring very high self-cleaning efficiency with low operation pressure

Reliability

High quality polymers providing robustness and high corrosion resistance

Minimum and tools-free maintenance, reducing time and labor required

Reliable and long-lasting operation, backed by 5 years warranty

Technical characteristics
Filtration technology
Discs
Cleaning system
Self-cleaning
Number of filters
1 - 8 x Ø2" filters
Nominal pressure
PN10
Material
Polymeric
Connection
Slotted and dIN/ANSI flange
I/O manifold
Ø2" - Ø8"
Degrees of filtration
100 - 400 micron
Discs
Self-cleaning
1 – 8 x Ø2″ filters
PN10
Polymeric
Slope

PC

Compensating Pressure

Ideal for

Irrigation on uneven terrain

Constant flow rate regardless of inlet pressure

Underground

PC AS

Anti-suction Compensating Pressure

Ideal for

Riego por goteo subterráneo

Previene la succión de partículas de suelo al apagarse el sistema

Pulsos

CNL / NCNL

Caudal No Limitado

Ideal for

Riego por pulsos

Adapta el caudal a ciclos intermitentes de alta demanda

Sin suelo

CNL / NCNL perf

Perforado

Ideal for

Cultivos sin suelo: macetas, bolsas o contenedores

Diseño perforado optimizado para sustratos y cultivo fuera de suelo

Tipo de gotero Ideal para
PC Riego en terrenos irregulares
PC AS Riego por goteo subterráneo
CNL/HCNL Riego por pulsos
CNL/HCNL pot Cultivos sin suelo en macetas, bolsas o contenedores.
Functionality
Expected lifespan More than 10 years
Type of dripper Integrated self-compensating
Topography Irregular and flat terrain
Installation type Underground, above ground, and in a pot
PC, PC AS, CNL/HCNL
Tubería (Modelo-Espesor) Ø16: 0.9 – 1.2 mm / Ø20: 1.1 – 1.2 mm
