AZUD FLUXAR

AZUD FLUXAR

Sectors

Agriculture
Landscaping
Residential
Mining

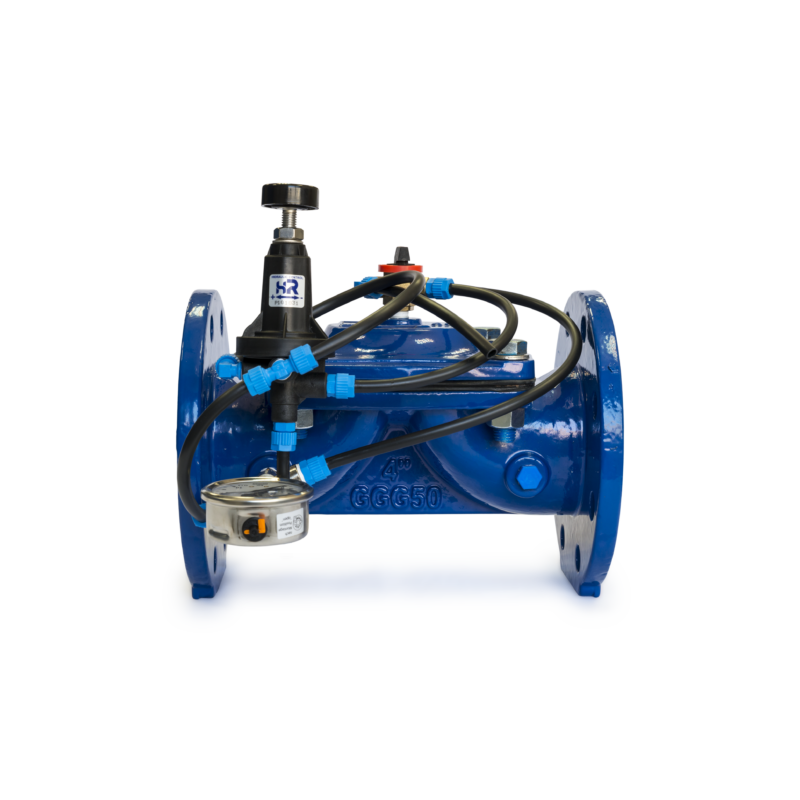

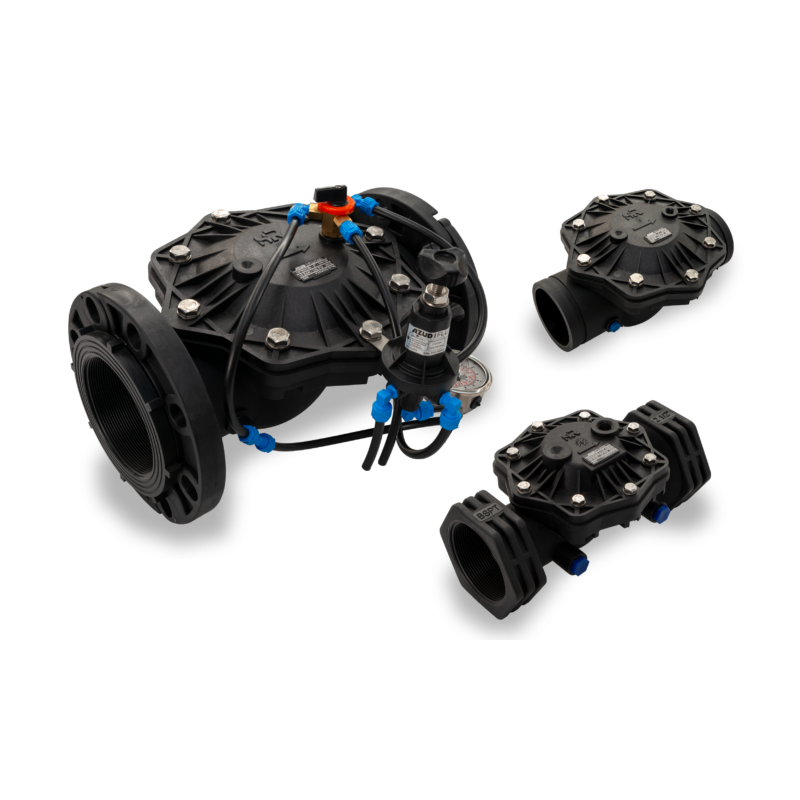

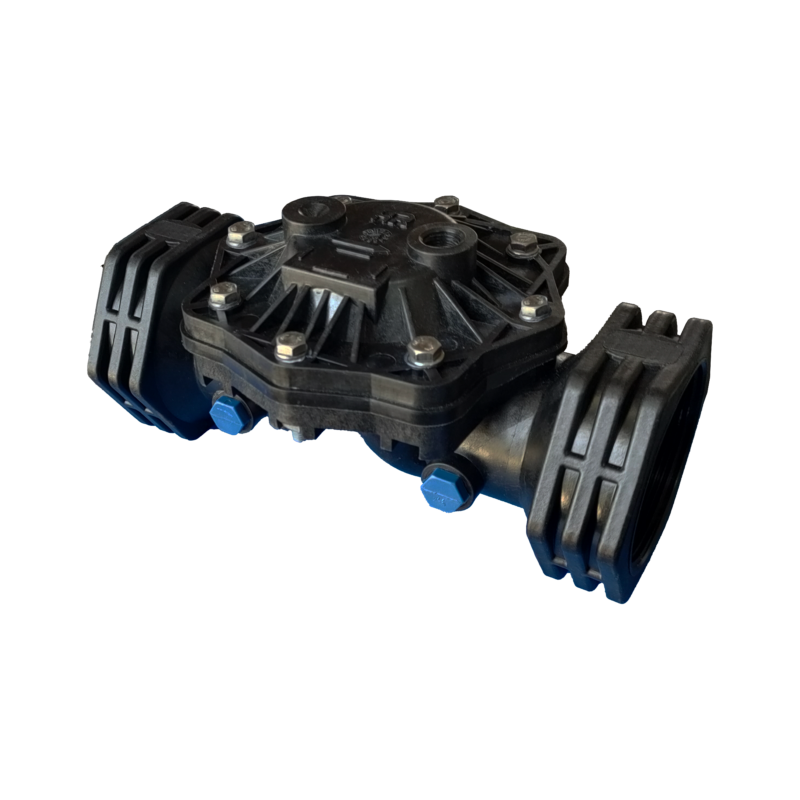

Hydraulic valves with two functions: (1) open/close the Flow rate of irrigation water; (2) regulate the operating conditions upstream or downstream. Manufactured in ductile cast iron (GGG50) / Grey cast iron (GG25) with anti-corrosion epoxy-polyester coating or nylon reinforced with video fiber.
Technical data AZUD FLUXAR
Differential values

Robustness

Excellent performance under pressure variations and/or demanding conditions

Reliability

Régulation rapide, précise et stable, vérifiée et validée sur bancs d’essai

Efficiency

Allows operation at low pressure with very low head loss (Kv), reducing the energy consumption in the system

Technical characteristics
Material
Metal and plastic
Connection diameter
Ø3/4" - Ø12"
Connection
Thread, slotted and flange
Nominal pressure
PN10, PN16 and PN6
Automations
Holders (ST/EV-ST), gearboxes (RD/EV-RD), solenoid valves (EV) and filter holder kit (FL)
Metal and plastic
Ø3/4″ – Ø12″
Thread, slotted and flange
PN10, PN16 and PN6
Slope

PC

Compensating Pressure

Ideal for

Irrigation on uneven terrain

Constant flow rate regardless of inlet pressure

Underground

PC AS

Anti-suction Compensating Pressure

Ideal for

Riego por goteo subterráneo

Previene la succión de partículas de suelo al apagarse el sistema

Pulsos

CNL / NCNL

Caudal No Limitado

Ideal for

Riego por pulsos

Adapta el caudal a ciclos intermitentes de alta demanda

Sin suelo

CNL / NCNL perf

Perforado

Ideal for

Cultivos sin suelo: macetas, bolsas o contenedores

Diseño perforado optimizado para sustratos y cultivo fuera de suelo

Tipo de gotero Ideal para
PC Riego en terrenos irregulares
PC AS Riego por goteo subterráneo
CNL/HCNL Riego por pulsos
CNL/HCNL pot Cultivos sin suelo en macetas, bolsas o contenedores.
Functionality
Expected lifespan More than 10 years
Type of dripper Integrated self-compensating
Topography Irregular and flat terrain
Installation type Underground, above ground, and in a pot
PC, PC AS, CNL/HCNL
Tubería (Modelo-Espesor) Ø16: 0.9 – 1.2 mm / Ø20: 1.1 – 1.2 mm
Related products
Agricultura
Minería
Paisajismo
Residencial
17Z6

AZUD VORA

Ø3/4″ – Ø2″ Thread
Polymeric
PN16* (*Antivacuum PN12)
Ø3/4″ – Ø2″ Thread
Polymeric
PN16* (*Antivacuum PN12)
Paisajismo
Agricultura
Residencial
Minería
18Z5

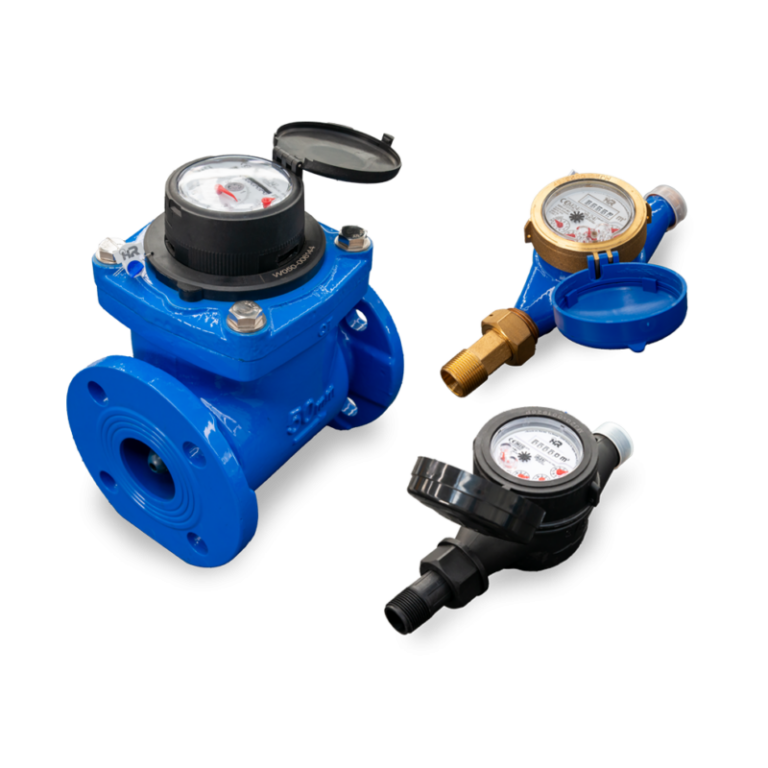

AZUD META
